MetalJet C2

Attractive and cost effective brightness

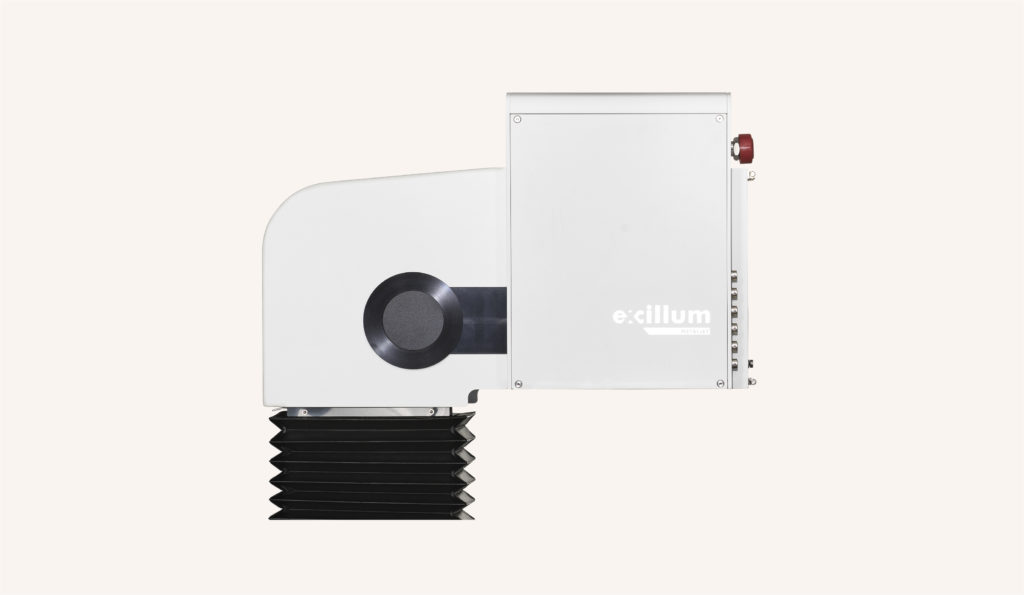

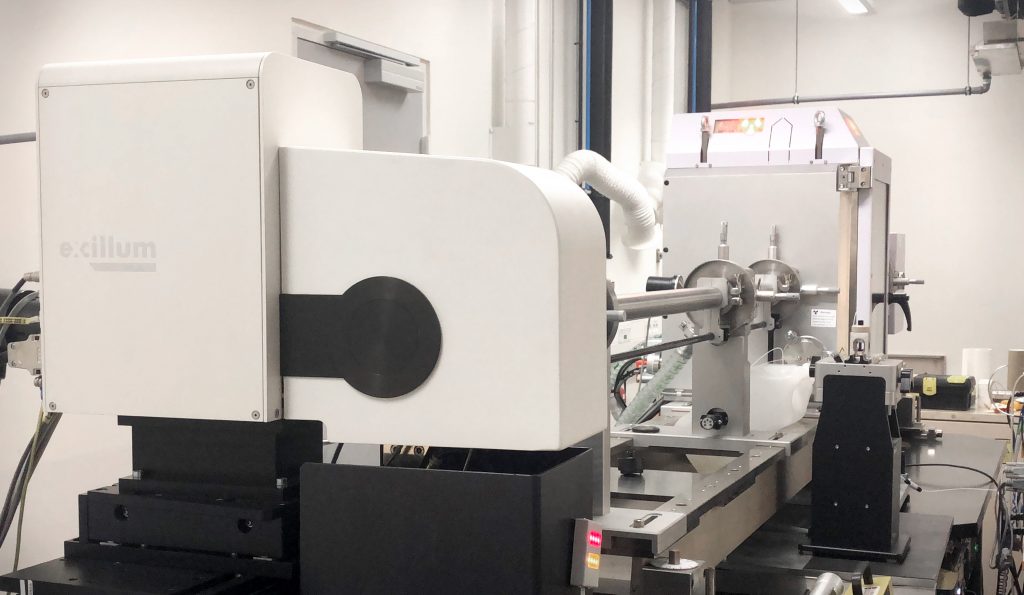

The Excillum MetalJet C2 offers an attractive, cost effective version of the metal-jet X-ray source technology with simplified electron optics producing a round electron beam focus.

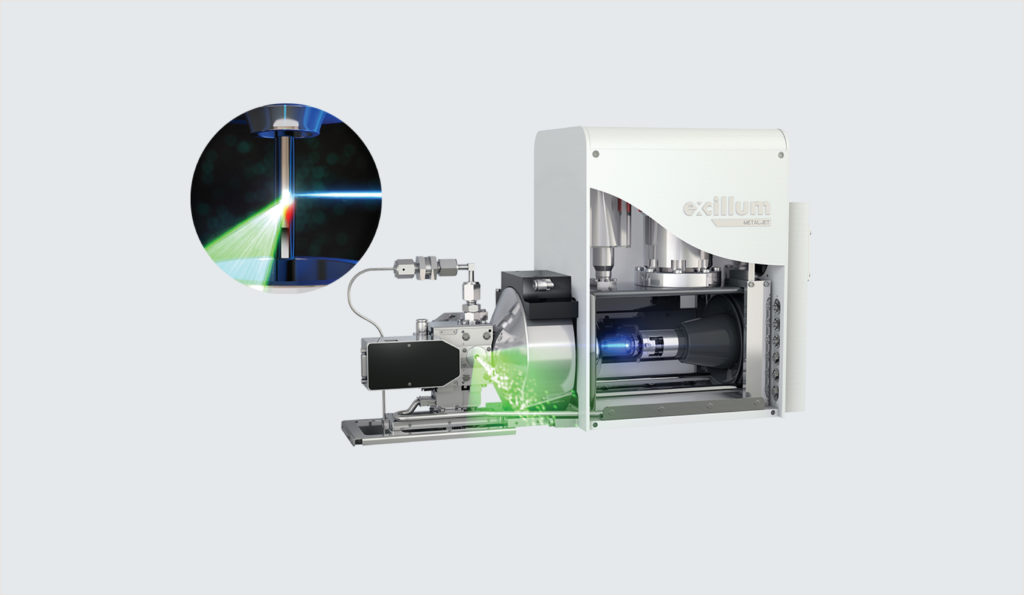

The Excillum MetalJet C2 features our unique liquid-metal-jet-anode technology and advanced electron optics. It delivers significantly higher brightness than a solid-target microfocus X-ray source, with an excellent spot quality. With the MetalJet C2 you will get a high-performance microfocus X-ray source, at a competitive price. If you in the future need even higher brightness than what is achievable with the round electron-beam focus, you have the possibility to upgrade to the MetalJet D2+, to get the world’s brightest microfocus X-ray tube.

With the introduction of Dynamic Adaptation technology the practical cathode lifetime has been further extended 2-4x, up to a full year of 24/7 operation depending on application.

MetalJet D2+ microfocus X-ray source

Features and benefits

  • Very high microfocus source power
  • Superior spot quality
  • User variable spot size
  • Very stable x-ray emission and spot position
  • Adjustable take-off angle
  • Integrated radiation shielding1
  • Optional dual-port mode
  • Optional shutter
  • No external cooling water requirement
  • Minimum and predictable maintenance
  • LaB6 long-life cathode
  • Operated remotely from any computer
  • Controlled with GUI or TCP/IP protocol
  • User-friendly Graphical User Interface
  • Upgradable to D2+

1) In order for the source to be fully shielded it needs to be operated with the shutter mounted and closed, otherwise the source naturally emit X-rays through the window and in the window region.

Technical specifications

Target material2

Liquid metal alloy

Min. focal spot size

< 10 μm (~5 µm offered on request)

Target type

Liquid jet

Emission stability4

< 1%


21-70 kV

Position stability4

< 1 μm


0-200 W

Min. focus-object distance5

18 mm

Max current

4.3 mA

Beam angle6


2) Room temperature liquid gallium alloys consist mainly of gallium, indium and tin. They have low reactivity and low toxicity but should be handled according to their safety data sheets and local regulations. The currently available anode alloys are ExAlloy G1 with 95% gallium and ExAlloy I1 with 21% indium (see typical emission spectra on next page).
3) The actual power used is dependent on spot-size and voltage. Maximum power allowed by the software is 200 W, however, maximum output power of the 70 kV high-voltage generators is 300 W.
4) Standard deviation.
5) Without a shutter (24.8 mm with shutter).
6) Without a shutter (10.5° with shutter).

Available target alloys

Target alloy

[weight %]

[weight %]

[weight %]

















7) Operation of ExAlloy-I2 requires that the MetalJet source is equipped with a heater system since the melting point is above room temperature. Due to this requirement the MetalJet sources with ExAlloy-I2 are under limited availability. Please contact us for further information.

Spot stability over 24 h
Spot shape example
Emission Spectra at 50 W, 70 kV, 20 µm (0.1 keV bin width)

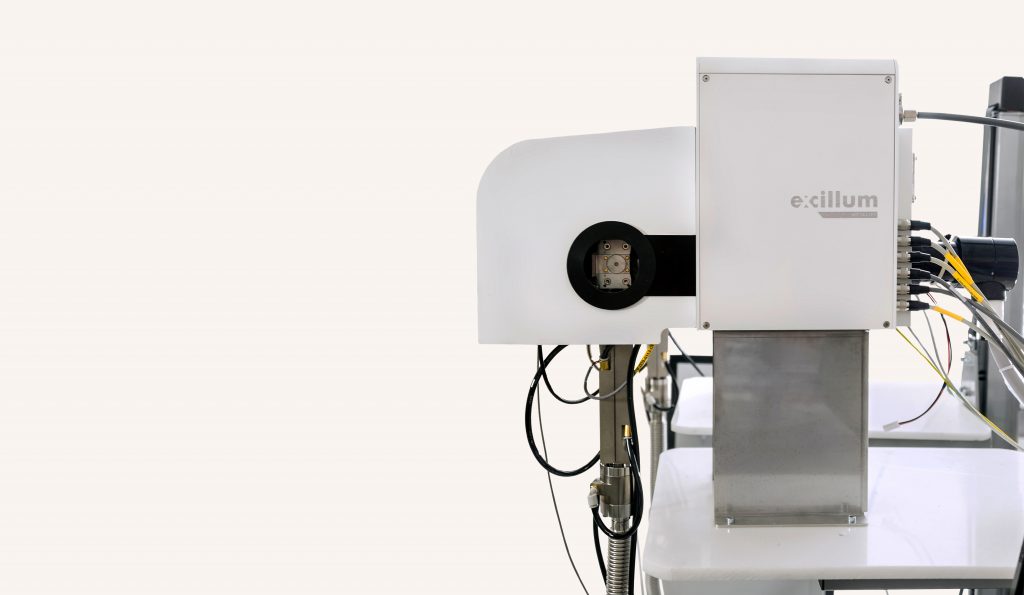

The source consists of the head and the pump system with dimensi- ons shown in the drawing. The head has to be mounted essentiallystraight above the pump system. The coupling is semi-rigid, allowingsome movement of the source head.

In addition, the MetalJet C2 consists of two 4U (176 mm height) 19” rack electronics boxes and a floor standing air/water chiller (69×36×62 cm), that can be mounted up to 4m from the head and pump system.

Sources operating with ExAlloy I2 furthermore have heater jackets around parts in the alloy recirculation loop as well as an additional 3U (133 mm height), 19″ rack mounted controller.

The source can be remotely operated through TCP/IP or directly through the GUI. The GUI can be operated on the source itself if it isequipped with monitor, keyboard and mouse, or on most computerplatforms with a TCP/ IP connection to the source.

The source cannot be operated as a standalone unit and must be integrated into a system providing the proper interlock connections.

Mains: AC, single phase, 200-240 V, 16 A, 50/60 Hz.

Ambient: 20-25°C (stable within ± 0.2°C for optimal source stability), max 85% relative humidity.

Performance examples

Spot size8 [μm, FWHM]

E-beam power [W]

Ga Kα (9.2 keV) peak brightness [photons/(s mm2 mrad2)]

Ga Kα radiant flux [ph/(s mrad2)]







8) E-beam spot size, similar to the X-ray spot height. The X-ray spot width will be smaller.
