MetalJet D2+ 70 kV
The world's brightest home-lab X-ray source

The MetalJet D2+ features Excillum’s unique metal-jet anode technology and advanced electron optics. Achieving significantly higher brightness and smaller spot sizes than any other available microfocus X-ray source, the MetalJet D2+ can create very brilliant and small beams enabling the closest possible performance to synchrotron capabilities in the home lab.

Within the 5-30 μm spot-size range, the Excillum MetalJet D2+ delivers significantly higher brightness than any other available microfocus X-ray source on the market, and with an excellent spot quality. This makes it an ideal source for any microfocus application requiring shorter exposure times, higher throughput or better signal to noise.

With the introduction of Dynamic Adaptation technology the practical cathode lifetime has been further extended 2-4x, up to a full year of 24/7 operation depending on application.

Features and benefits

Extreme microfocus source power
Optional shutter
Superior spot quality
Optional dual-port mode
Minimal maintenance
User variable size and aspect ratio of spot
LaB₆ long-life cathode

Very stable X-ray emission and spot position
User-friendly Graphical User Interface
Controlled through GUI or TCP/IP protocol
Integrated radiation shielding
Adjustable take-off angle
No external cooling water requirement
Operated remotely from any computer

Technical specifications

Target material¹	Liquid metal alloy	Min. focal spot size	~ 5 μm
Target type	Liquid jet	Emission stability³	< 1%
Voltage	21-70 kV	Position stability³	< 1 μm
Power²	0-250 W	Min. focus-object distance⁴	18 mm
Max current	4.3 mA	Beam angle⁵	13°/30°

Available target alloys

Target alloy	Gallium [weight %]	Indium [weight %]	Tin [weight %]
ExAlloy-G1	95	5	–
ExAlloy-I1	68	22	10
ExAlloy-I2⁶	47	37	16
ExAlloy-I3	75	25	–

1) The room temperature liquid metal alloys supplied for the MetalJet source consist mainly of gallium, indium and tin. They have low reactivity and low toxicity but should be handled according to their safety data sheets and local regulations.
2) The actual power used is dependent on spot-size and voltage. However, maximum output power of the 70 kV high-voltage-generator is 300 W.
3) Standard deviation.
4) Without a shutter (24.8 mm with shutter).
5) Without a shutter (10.5° with shutter).
6) Operation of ExAlloy-I2 requires that the MetalJet source is equipped with a heater system since the melting point is above room temperature. Due to this requirement the MetalJet sources with ExAlloy-I2 are under limited availability. Please contact us for further information.

70 kV performance examples

Jet material	Nominal X-ray spot size⁶ [µm]	E-beam power [W]	Ga Kα (9.2 keV) peak brightness [photons/(s mm² mrad²)]	Ga Kα (9.2 keV) radiant flux [photons/(s mrad²)]	In Kα (24 keV) peak brightness [photons/(s mm² mrad²)]	In Kα (24 keV) radiant flux [photons/(s mrad²)]
ExAlloy-G1	10	125	4.3×10¹⁰	6.3×10⁶	6.0×10⁸	9.0×10⁴
ExAlloy-G1	20	250	3.2×10¹⁰	1.1×10⁷	4.7×10⁸	1.6×10⁵
ExAlloy-I1	10	125	2.6×10¹⁰	3.7×10⁶	1.7×10⁹	2.6×10⁵
ExAlloy-I1	20	250	1.8×10¹⁰	6.4×10⁶	1.4×10⁹	4.7×10⁵
ExAlloy-I2	10	125	1.6×10¹⁰	2.3×10⁶	2.9×10⁹	4.4×10⁵
ExAlloy-I2	20	250	1.1×10¹⁰	4.0×10⁶	2.3×10⁹	7.9×10⁵

6) Actual e-beam spot is 40×10 and 80×20 μm line focus respectively, but the apparent X-ray spot is essentially circular.

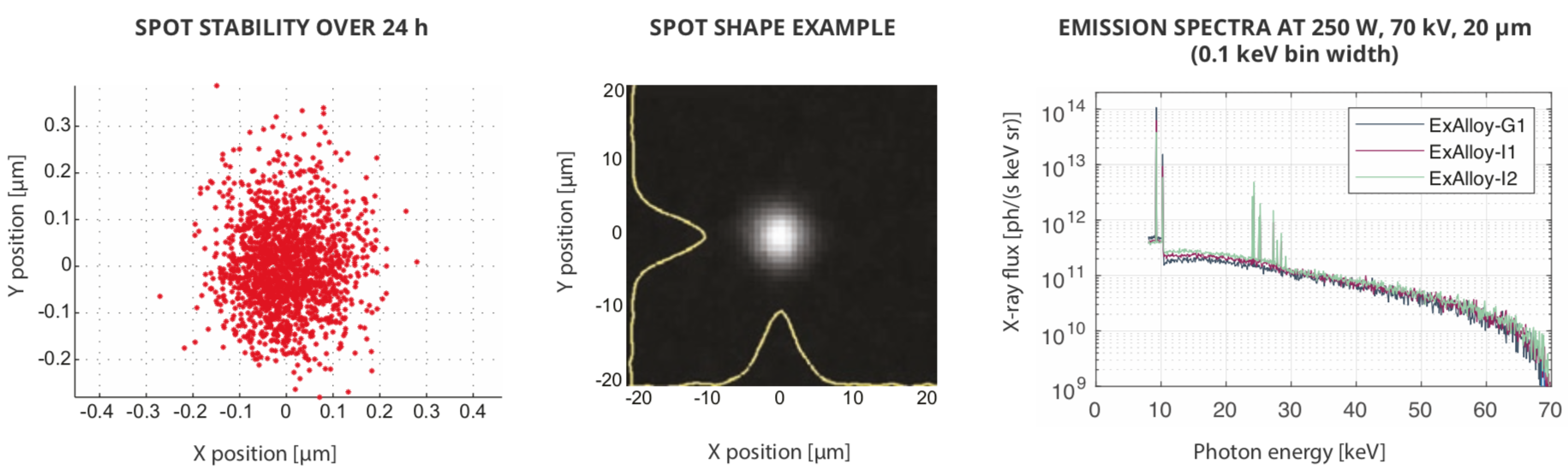

Characteristics

Installation and operation

The source consists of the head and the pump system with dimensions shown in the drawing. The head has to be mounted essentially straight above the pump system. The coupling is semi-rigid, allowing some movement of the source head.

In addition, the MetalJet D2+ 70 kV consists of two 4U (176 mm height) 19” rack electronics boxes and a floor standing air/water chiller (69×36×62 cm), that can be mounted up to 4m from the head and pump system.

Sources operating with ExAlloy I2 furthermore have heater jackets around parts in the alloy recirculation loop as well as an additional 3U (133 mm height), 19” rack mounted controller.

The source can be remotely operated through TCP/IP or directly through the GUI. The GUI can be operated on the source itself if it is equipped with monitor, keyboard and mouse, or on most computer platforms with a TCP/ IP connection to the source.

The source cannot be operated as a standalone unit and must be integrated into a system providing the proper interlock connections.

Mains: AC, single phase, 200-240 V, 16 A, 50/60 Hz.

Ambient: 20-25°C (stable within ± 0.2°C for optimal source stability), max 85% relative humidity.

Safety and compliance

Excillum’s X-ray sources are compliant with the Machinery Directive 2006/42/EC, RoHS Directive 2011/65/EU and Low Voltage Directive 2014/35/EU. Excillum’s X-ray sources are a sub-assembly and therefore excluded from the EMC Directive 2014/30/EU, hence also conform to the definition of partly completed machinery and so should not be CE marked. Our X-ray sources are intended for system integration into customer equipment. The system integrator is solely responsible for final certification and safety compliance. X-rays emitted from the source are harmful for the human body and it is the sole responsibility of the system integrator to comply with all regulations and to protect all personnel during operation. The X-ray source may be subject to local government radiation hazard regulations.
